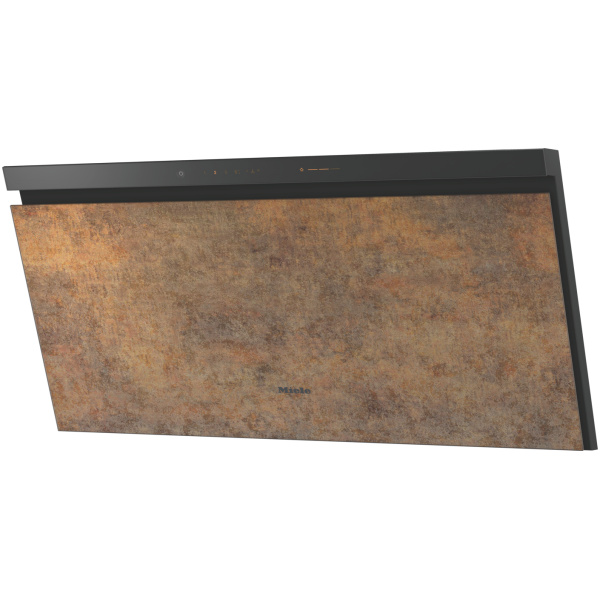

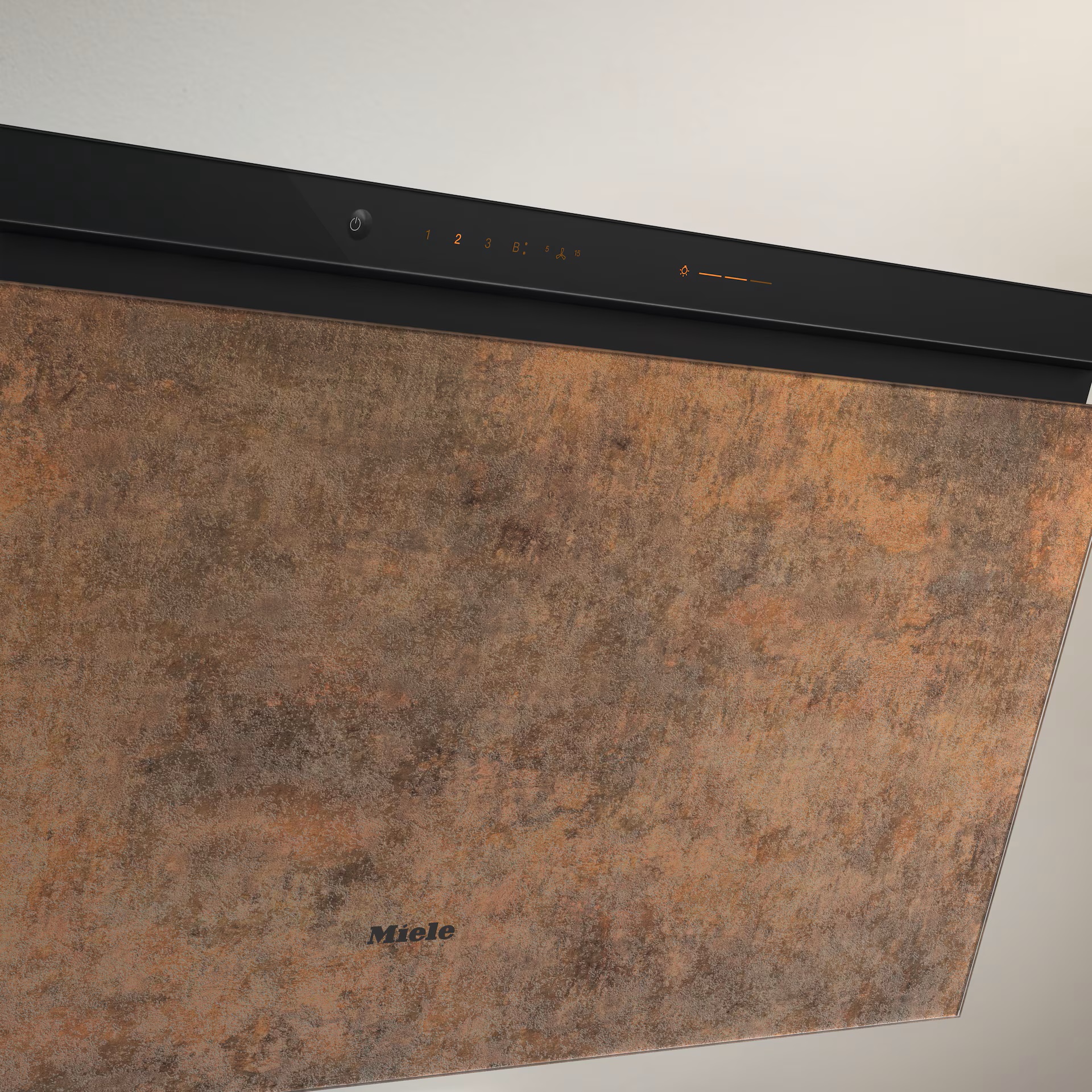

Miele Wall hood DAH4970 Sienna Bronze patina

1799 €
In Stock
SKU: 12534130
Wall extractor with Con@ctivity and SmartControl function for absolute comfort ECO motor – the quietest Miele corner hood at just 50 dB with suction function, level 3 (dB(A) re 1 pW) according to EN 60704-3 Unique user comfort – SmartControl and Con@ctivity Effective filtering - 10-fold stainless steel grease filter Plenty of headroom – with a wide front, 898 mm Perfect combination – glass panel and front in the same color

More product information

Installation Cost

CHAT WITH US

WhatsApp Pilacouris Transparent Background 2Viber Pilakouris transparent background 2    icons8 facebook messenger 48

OR CALL +357 25 345 488

Installation Cost (carrying appliance via steps not included)
Due to Global Shipping Delays ask for availability and delivery timeframe before you order.

Highlights

ACTIVE FILTER

Active AirClean filter

A completely odour-free kitchen

Miele recirculation mode cooker hoods always require an Active AirClean filter in addition to the grease filter. This Miele filter removes odours efficiently and long-term.


Stainless steel grease filters (10-layer)

STAINLESS STEELAesthetically pleasing and highly functional
Miele cooker hoods are equipped with a 10-ply stainless-steel grease filter. The top layers and filter frame are made of high-quality stainless steel. "When you conveniently clean the grease filters in the dishwasher, no visible discolouring will occur," and the Miele grease filters keep their high-quality appearance for a long time.

Miele CleanCover

MIELE CLEAN COVERConvenience and safety in detail
Located behind the grease filters is the Miele CleanCover: Instead of sharp metal edges and electrical components you will find only a sealed, smooth surface. It is particularly easy to clean and protects you from coming in contact with cables and motor components. Miele attention to detail - for your convenience and safety.


LED spotlights

LED SPOTLIGHTSPowerful lighting with minimum energy consumption
LED spotlights are an optical highlight and are environmentally friendly. A Miele LED spotlight consumes only 3 or 4.5 W and thus saves a lot of electricity. Miele LEDs illuminate the hob with a warm, natural and even light.

Perfect processing

PERFECT PROCESSINGVisible quality
Miele cooker hood canopies and towers are made from high-quality welded and polished stainless steel. Even from the outside you can see the quality of a Miele hood: Precise contours and precision joints are typical characteristics of Miele cooker hoods. Enjoy perfect workmanship!


Handcrafted in Germany

HANDCRAFTED IN GERMANYEach Miele cooker hood is unique.
Almost all Miele cooker hoods are developed at Miele's Arnsberg plant and are, for the most part, hand-crafted. Each cooker hood is unique. Every stage of the manufacturing process involves a certain amount of manual craftsmanship: From shaping the steel to welding and polishing. The commitment of employees, their expertise, creativity and desire to excel have contributed greatly to Mieles position in the market today.

Design flexibility

DESIGN FLEXIBILITYTimeless purism
Miele offers cooker hoods in a large variety of designs with many functional features - perfect technology for every situation. Miele cooker hoods have characteristic accents without being intrusive. Clean lines, well thought-out functions and timeless design.


Specifications



DAH 4970 Sienna - Material No :12534070 - EAN 4002516802402

Construction type
Wall-mounted hood
Yes
Island type hood
No
Slimline hood
No
Built-in hood
No
Ceiling extractor
No
Extractor built-in under the counter
No
Pull-out hood
No
Bench hood system
No
RangeHood
No
Planning
Color Bronze patina
RAL colors available for custom customization
No
Possibility of personalization on demand
No
Adjustable height available for custom customization
No
Adjustable width available for custom customization
No
Multi-zone edge extraction
No
Extraction from the ends
Yes
Modes of operation
Activated carbon filter (separate order)
Carbon filter DFK 29
Air duct type
location after the fact
External operation
No
Comfort for the user
Glass touch switches
Yes - No
SmartControl white
No
AmbientFragrance
No
HumidityBalance
No
Miele@mobile app
No
Mechanical controls
No
Electronic controls
Yes
Slide switch
No
Rotary switch
No
Control rod
No
Touch switches
No
ON/OFF switch
Yes
Power Tiers (Number without Booster Tier)
3
Programmable Booster Tier Off Time
No
Extension time 5/15 min.
Yes
Extension time 15 min.
No
Grease filter saturation indicator
Yes
Programmable grease filter saturation indicator
Yes
Programmable activated carbon filter saturation indicator
Yes
Quiet running package
Yes
Motorized hoods
No
Easy cleaning of the inner dome – CleanCover
Yes
Honey@home
Yes
Con@ctivity automatic mode
Yes
Ease of cleaning
Easy cleaning of the inner dome – CleanCover
Yes
Efficiency and sustainability
Energy efficiency class (A+++ to D)
A++
Annual energy consumption in kWh/year
28.2
Hydrodynamics energy class
A
Lighting energy class
A
Grease filtration performance class
D
Power Management System
Yes
Filter system
Set of dishwasher-safe stainless steel grease filters (10x)
2
Lighting
Colored room lighting
No
Halogen
No
LED
Yes
Fluorescent lamps
No
Number x W
1 x 3,2 W
Illuminance in Lx
260 lx
Color temperature in K
3500 Kelvin
Light intensity adjustment function
Yes
Perimeter lighting with variable color
No
White room lighting
No
Turbine
Single turbine
No
Double turbine
Yes
AC motor
No
DC motor
Yes
Export
Absorbency in booster stage 2 (m³/h)
875
Sound power in Booster level 2 (dB(A) re 1 pW) according to EN 60704-3
68.0
Sound pressure at Booster level 2 (dB(A) re 20 μPa) according to EN 60704-2-13
54.0
Air flow in step 1 (m³/h) according to EN 61591
215
Air flow in tier 2 (m³/h) according to EN 61591
315
Air flow at level 3 (m³/h) according to EN 61591
415
Absorbency in booster stage 1 (m³/h)
660
Sound power level 1 (dB(A) re 1 pW) according to EN 60704-3
38.0
Sound power level 2 (dB(A) re 1 pW) according to EN 60704-3
45.0
Sound power level 3 (dB(A) re 1 pW) according to EN 60704-3
50.0
Sound power in Booster level 1 (dB(A) re 1 pW) according to EN 60704-3
61.0
Sound pressure level 1 (dB(A) re 20 µPa) according to EN 60704-2-13
24.0
Sound pressure level 2 (dB(A) re 20 µPa) according to EN 60704-2-13
31.0
Sound pressure level 3 (dB(A) re 20 µPa) according to EN 60704-2-13
36.0
Sound pressure at Booster level 1 (dB(A) re 20 µPa) according to EN 60704-2-13
47.0
Safety
Security disable
Yes
Single safety glass (ESG)
Yes

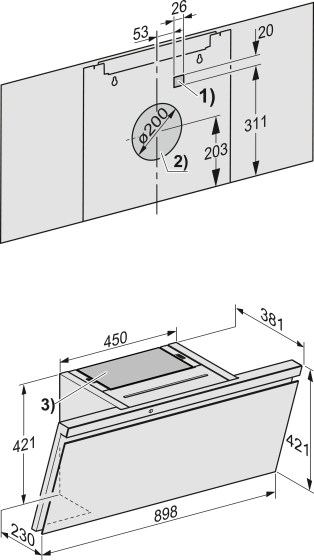

Technical data
Total height of exhaust hoods and exterior hoods in mm
1210
Total height of recirculation mode hoods in mm
420
Total height for vent and exterior in in. (mm)
830
Total height for recycling in in. (mm)
420
Canopy width in in. (mm)
898
Canopy height in in. (mm)
420
Hood dome depth in in. (mm)
381
Minimum height above electric hobs in mm
450
Minimum safety distance above gas hobs (up to 12.6 kW total power, burner ≤ 4.5 kW) in mm
650
Net weight in kg
18.0
Power cable length in m
1.3
With common plug
Yes
Permanent electrical connection
No
Total connection power in kW
0.223
Voltage in V
230
Safety in A
10
Frequency in Hz
50
Number of phases
1
Installation notes
Exhaust air connection on top
Yes
Side exhaust connection
No
Top and rear exhaust connection
Yes
Top, rear and side exhaust connection
No
Top/rear/side/bottom exhaust connection
No
Exhaust air connection diameter in mm
150
Telescopic chimney
No
Fixing of "free" chimney
No
Placement template
No
Supplied accessories
Perfume bottle
No
Activated carbon filter, reactivated
No
Dehumidification filter
No
Adapter to reduce the diameter of air ducts from 150 mm to 125 mm Ø
No
Adapter to reduce the diameter of air ducts from 150 mm to 120 mm Ø
No
Check valve
Yes
Recirculation deflector
No
Active carbon filter
No
Remote control
No
Recirculation
Air flow at Booster level 2 (m³/h) according to EN 61591
720
Sound power in Booster level 2 (dB(A) re 1 pW) according to EN 60704-3
76.0
Sound pressure at Booster level 2 (dB(A) re 20 μPa) according to EN 60704-2-13
62.0
Air flow in step 1 (m³/h) according to EN 61591
175
Air flow in tier 2 (m³/h) according to EN 61591
275
Air flow at level 3 (m³/h) according to EN 61591
430
Air flow in Booster stage 1 (m³/h) according to EN 61591
625
Sound power level 1 (dB(A) re 1 pW) according to EN 60704-3
46.0
Sound power level 2 (dB(A) re 1 pW) according to EN 60704-3
53.0
Sound power level 3 (dB(A) re 1 pW) according to EN 60704-3
64.0
Sound power in Booster level 1 (dB(A) re 1 pW) according to EN 60704-3
73.0
Sound pressure level 1 (dB(A) re 20 µPa) according to EN 60704-2-13
32.0
Sound pressure level 2 (dB(A) re 20 µPa) according to EN 60704-2-13
39.0
Sound pressure level 3 (dB(A) re 20 µPa) according to EN 60704-2-13
50.0
Sound pressure at Booster level 1 (dB(A) re 20 µPa) according to EN 60704-2-13
59.0



Downloads



Instructions for use/Installation instructions

Image Measurements (Image)

Manual (PDF)

Guarantee booklet (Pdf)

Installation plans

Instalation Drawings (Image)
