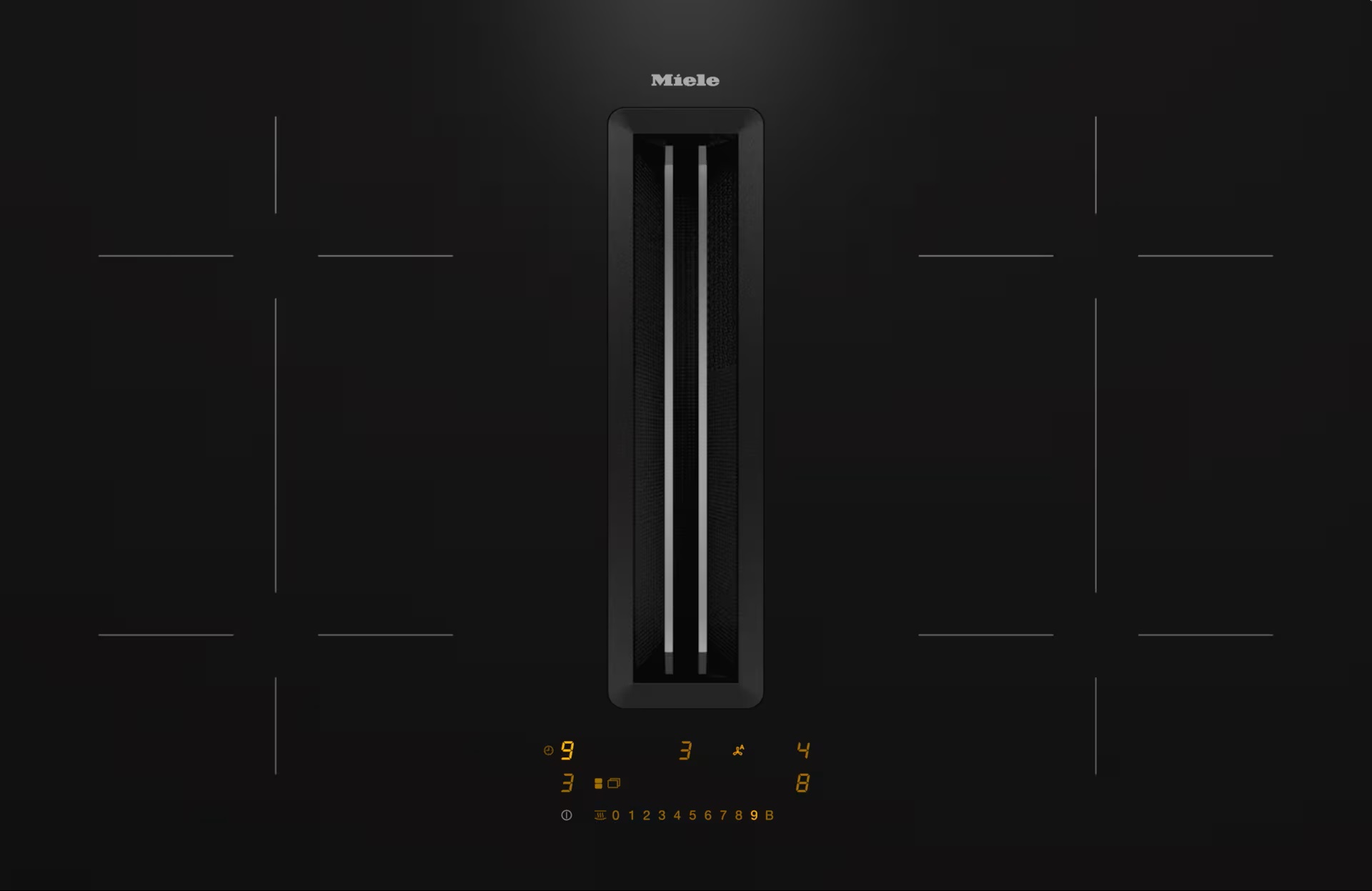

Miele Induction hob with integrated extraction KMDA7473-1 FL D

3199 €
In Stock
SKU: 12904810
Induction hob with integrated extractor hood with Silence motor, 4 cooking zones and 2 Flex zones for extraction Lots of space - 4 round cooking zones Elegant design - flush extractor hood Automatic regulation of the blower levels - Con @ ctivity Compact control using a series of numbers - ComfortSelect Plus Energy-saving and quiet - powerful ECO motor

More product information

Installation Cost

CHAT WITH US

WhatsApp Pilacouris Transparent Background 2Viber Pilakouris transparent background 2    icons8 facebook messenger 48

OR CALL +357 25 345 488

Installation Cost (carrying appliance via steps not included)
Due to Global Shipping Delays ask for availability and delivery timeframe before you order.

Highlights

miele clean cover

Miele CleanCover

Convenience and safety in detail

Located behind the grease filters is the Miele CleanCover: Instead of sharp metal edges and electrical components you will find only a sealed, smooth surface. It is particularly easy to clean and protects you from coming in contact with cables and motor components. Miele attention to detail - for your convenience and safety.


ECO motor

eco motorThe heart of every cooker hood
The ECO motor operates with DC current and saves up 70% energy compared to conventional motors. Thanks to this technology, it operates very quietly yet as powerfully as all fans used by Miele.

Stainless steel grease filters

stainless steel grease filtersAesthetically pleasing and highly functional
Miele cooker hoods are equipped with a 10-ply stainless-steel grease filter. The top layers and filter frame are made of high-quality stainless steel. "When you conveniently clean the grease filters in the dishwasher, no visible discolouring will occur," and the Miele grease filters keep their high-quality appearance for a long time.


Longlife AirClean filter

long life air clean filterA completely odour-free kitchen
Thanks to the durable honeycomb active charcoal filters, which are made of bituminous coal and can be regenerated in the oven, odours are absorbed efficiently.

Safety switch-off

safety switchPeace of mind
A maximum operating duration is defined for each power level. If a cooking zone is operated for an unusually long time at the same power level, it switches off automatically.


Overheating protection and fault monitoring

OVERHEATING PROTECTIONTo ensure the appliance has a long service life
Every cooking zone is equipped with overheating protection. This automatically switches off the heating element of the cooking zone in case of extreme use before the ceramic glass or other components can overheat. If liquid or another item gets onto the surface by mistake, the hob automatically switches off as well. So you are always protected from an unintentional power adjustment.



Specifications



KMDA 7473 FR-A Silence - Material No :12183170 - EAN 4002516638421

Heating type
Heating type
Inductive
Construction type
Induction hob with integrated steam extraction
Yes
Operating modes
Exhaust air guided by optional accessories
DFK-xxxx
Unguided recirculation air (Plug&Play installation)
No
Design
Cover grille color
Stainless steel
Built-in hood
Yes
Elegant ceramic surface
Yes
Stainless steel frame
Yes
Recessed
No
Frameless – surface mounting
Yes
Cooking zone elements
Number of cooking zones
2
Maximum number of utensils
4
Number of cooking zones
4
PowerFlex cooking zones
Type
Flexible cooking zone
No.
4
Diameter in mm
Ø 110-210
Power in W
2100
Amplifier power in W
3000
1st cooking zone/area
Position
Left
Type
Flexible fireplace
Size in mm
210x420
Max. power in W
3000
Max. rated power Booster in W
3700
2nd cooking zone/area
Position
right
Type
Flexible cooking zone
Size in mm
210x420
Max. power in W
3000
Max. rated power Booster in W
3700
User comfort

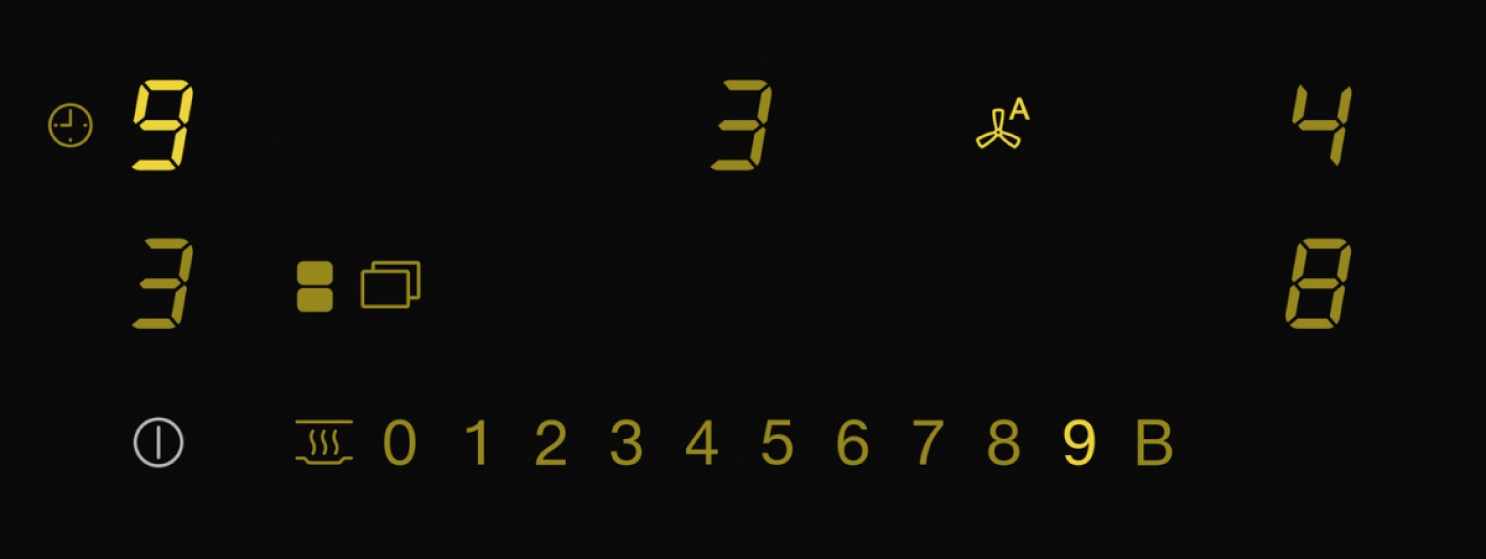

Operation via touch buttons
ComfortSelect Plus
Screen color
Yellow
Digital power level display
Yes
Permanent identification of utensils
Yes
Heat preservation
Yes
Stop & Go function
Yes
Recall function
Yes
Stopwatch
Yes
Security disable
Yes
Automatic preheating
Yes
Heat retention plus
No
Possibility of personalized settings (e.g. buzzers)
Yes
Extra time 5/15 min.
Yes
Grease filter saturation indicator
Yes
Activated carbon filter saturation indicator
Yes
Miele@home
Yes
Automatic Con@ctivity mode
Yes
Efficiency and sustainability
Silence Motor
Yes
Energy efficiency class (A+++ to D)
A+
Annual energy consumption in kWh/year
31.5
Hydrodynamic energy class
A
Lighting energy class
-
Grease filtration efficiency class
A
ECO motor
Yes
Ease of cleaning
Easy-to-clean ceramic glass
Yes
Wipe protection
Yes
Easy cleaning of the inner dome – CleanCover
Yes
Filter system
Number of dishwasher-safe stainless steel grease filters (10x)
1
Export
Air flow at min. level (m³/h) according to EN 61591
195
Air flow at max. level (m³/h) according to EN 61591
530
Sound power at min. level (dB(A) re 1 pW) according to EN 60704-3
41.0
Sound power at max. level (dB(A) re 1 pW) according to EN 60704-3
64.0
Sound pressure at min. level (dB(A) re 20 μPa) according to EN 60704-2-13
27.0
Sound pressure at max. level (dB(A) re 20 μPa) according to EN 60704-2-13
50.0
Air flow in intensive mode (m³/h) according to EN 61591
610
Sound power in Booster mode (dB(A) re 1 pW) according to EN 60704-3
70.0
Sound pressure level at the intensive level (dB(A) re 20 µPa) according to EN 60704-2-13
53.0
Safety
Connection for window contact switch
Yes
Security disable
Yes
Lock function
Yes
System lock
Yes
Built-in cooling fan
Yes
Overheating protection
Yes
Residual heat indicator
Yes

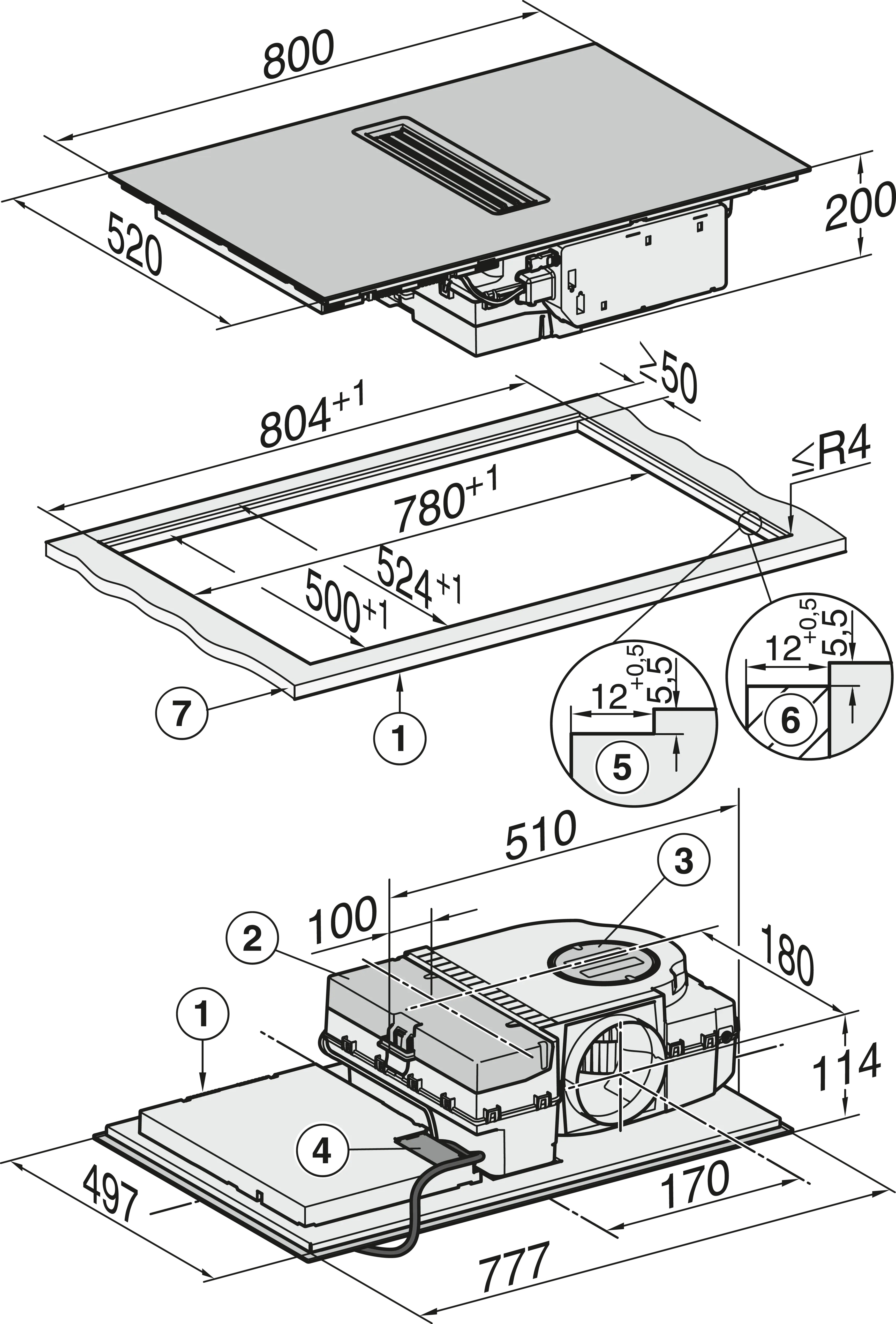

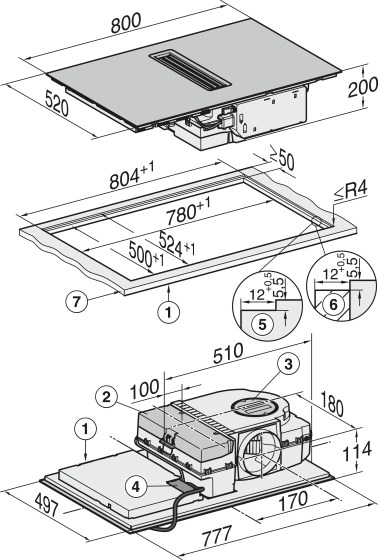

Technical data
Dimensions (W x D) in mm
800x201 x520
Technical modifications were carried out compared to KMDA 7774-1
No
Dimensions in mm (width)
800
Dimensions in mm (height)
201
Dimensions in mm (depth)
520
Frame height with junction box in mm
194
Built-in dimensions in mm (width) for surface mounting
780
Recessed dimensions in mm (depth) for surface mounting
500
Weight in kg
16
Total connection power in kW
7,500
Voltage in V
230
Frequency in Hz
50-60
Power cable length in m
1.6
Supplied accessories
Activated carbon filter for recirculation mode
No
Plug & Play Adapter
No
Power cable
Yes
Recipe book
No



Downloads



Instructions for use/Installation instructions

Image Measurements (Image)

Manual (PDF)

Warranty booklet (Pdf)
