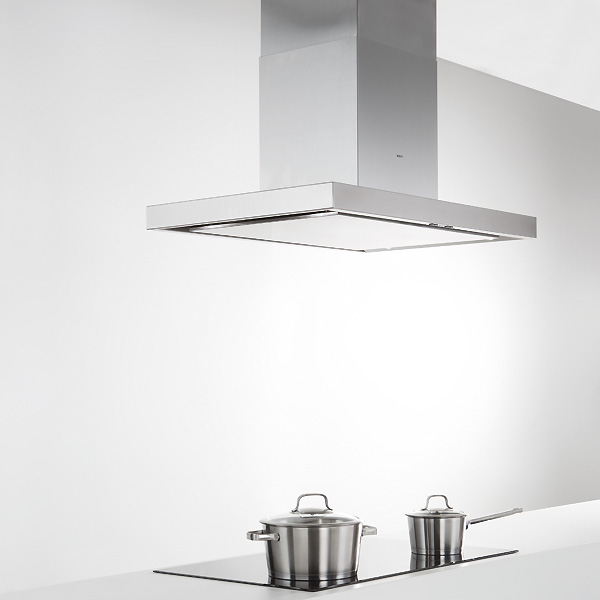

Novy Island mounted Flatline 7640
2210,00 €
1989 €
In Stock
Extra slim lines
Seamless finish
Subtle looking LED lighting (2700K)
CHAT WITH US
OR CALL : +357 25 345 488
Installation Cost (carrying appliance via steps not included)
Due to Global Shipping Delays ask for availability and delivery timeframe before you order.
Specifications

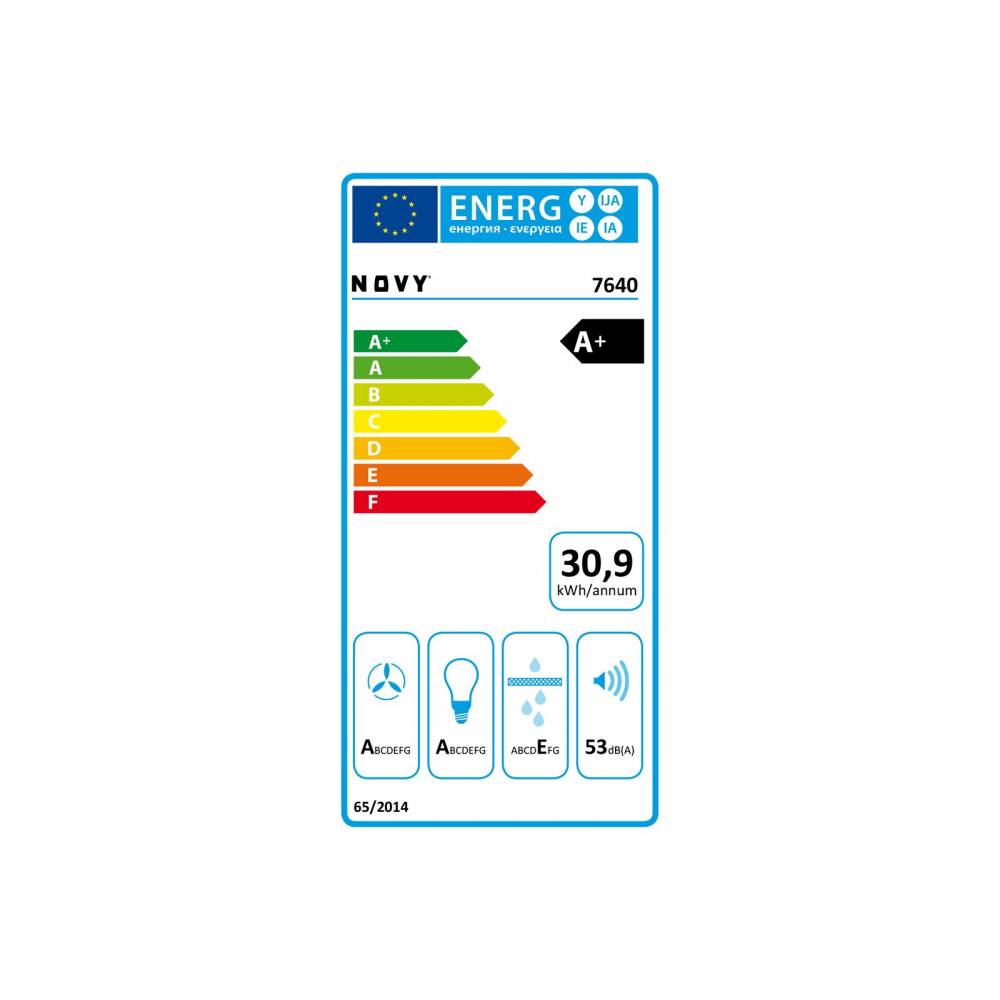

Energy label
Energy Efficiency class (EEIhood)
A+
Annual Energy Consumption (kWh/year) (AEChood)
30,9
Lighting Efficiency class (LEhood)
A
Fluid Dynamic Efficiency class (FDEhood)
A
Grease Filtering Efficiency class (GFEhood)
F
Functions and features
Control method
Push buttons
Number of speeds
3 + power
Automatic Power revert (minutes)
6
Motor
Integrated
Sound absorber
Integrated
Recirculation
Optional
InTouch function
Optional
Auto stop
Yes
Delayed switch off (minutes)
10
Number of grease filters
1
Grease filter
7530020
Grease filter cleaning indication
Yes
Recirculation filter cleaning indication
Yes
Lighting
Functional lighting type
LED
Ambient lighting type
Not Applicable
Functional light dimmable
Yes
Soft-ON/OFF
Yes
Number of functional lights
4
Total energy consumption functional light (W)
8
Color functional light (K)
2700
Color ambient light (K)
Not Applicable

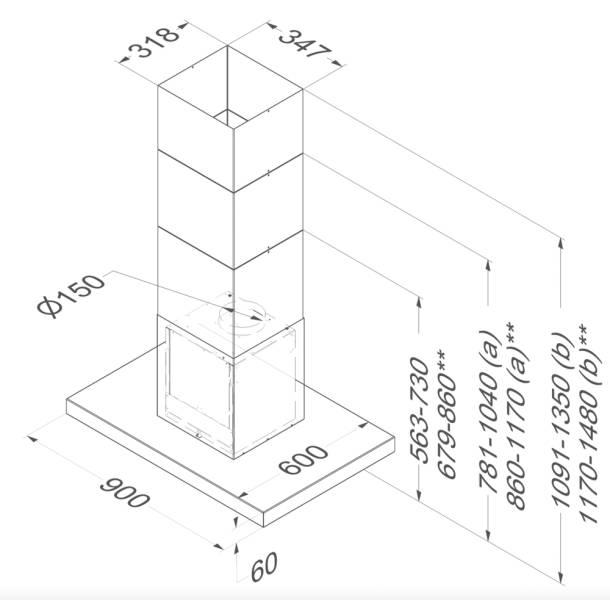

Dimensions
Advised mounting height induction hobs (Hmin-Hmax) (mm)
650 - 850
Product dimensions exhaust (WxDxHmin-Hmax) (mm)
900 x 600 x 563 - 730
Product dimensions recirculation (WxDxHmin-Hmax) (mm)
900 x 600 x 679 - 860
Max height optional chimney [a] exhaust (mm)
1040
Max height optional chimney [b] exhaust (mm)
1350
Max height optional chimney [b] recirculation (mm)
1480
Advised mounting height ceramic hobs (Hmin-Hmax) (mm)
600 - 850
Advised mounting height gas hobs (Hmin-Hmax) (mm)
650 - 850
Diameter outlet (mm)
150
Position exhaust
Top
Airflow and noise level
Airflow duct out speed 1 (m³/h)
277
Airflow duct out speed 2 (m³/h)
467
Airflow duct out speed 3 (m³/h)
620
Airflow duct out max powerspeed (m³/h) (Qboost)
707
Sound pressure duct out speed 1 (dB(A))
24
Sound pressure duct out speed 2 (dB(A))
34
Sound pressure duct out speed 3 (dB(A))
41
Sound pressure duct out at max powerspeed (dB(A))
44
Technical specifications
Maximum power (W)
118
Voltage appliance (V)
230
Frequency (Hz)
50
Length power supply cable (m)
1,3
Power consumption in stand-by-mode (Ps) (W)
0.25
Net weight (kg)
37,5
Novy Connect
Not applicable
